Waterway Plow
Waterway Plow
Three point and Skid loader mounted Waterway models
Model WWT-SFP36

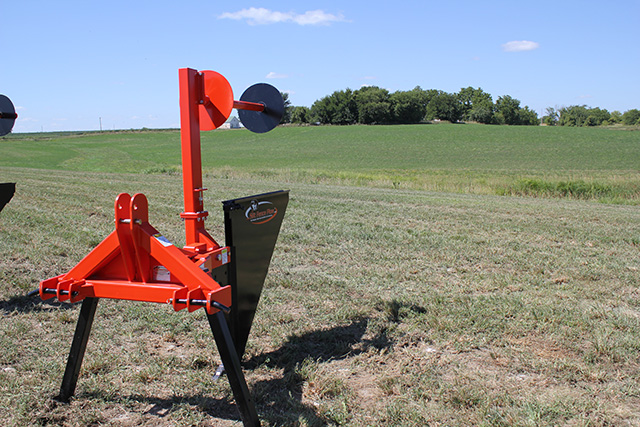

The three point hitch mounted model plow requires a hyd. top link cylinder for proper operation. It goes in place of the rigid top link and allows the plow to be adjusted so it can follow the terrain of the ground.

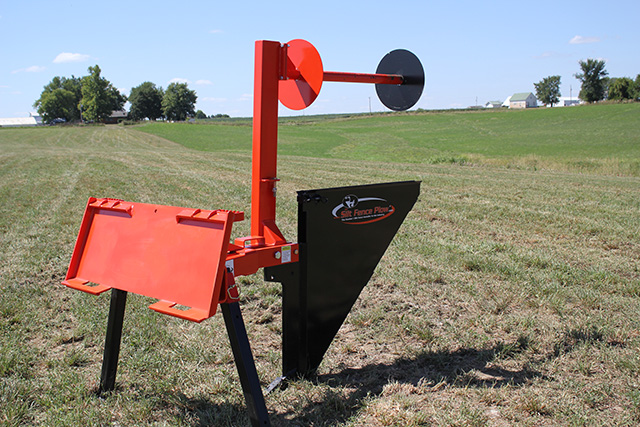

Model WWS-SFP36
Skid loader Mounted 36" Waterway Plow
Waterway Plow

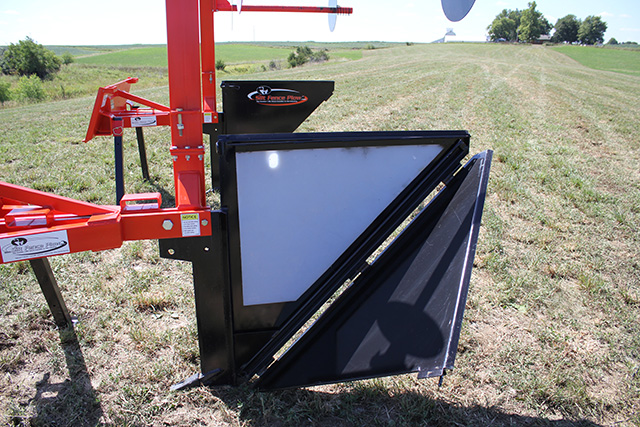

The waterway plow includes the fabric curtain. This allows the fabric to go through the chute without rubbing against it self. The non woven material that most NRCS offices spec is a felt like texture and can drag when it rubs against itself.
Waterway Plow Fabric Check

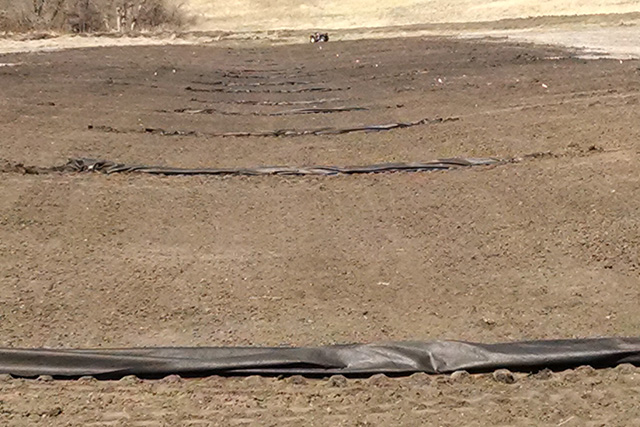

These pictures show fabric checks in new waterways. The waterways are seeded before the fabric checks are installed.
Waterway Plow Fabric Check

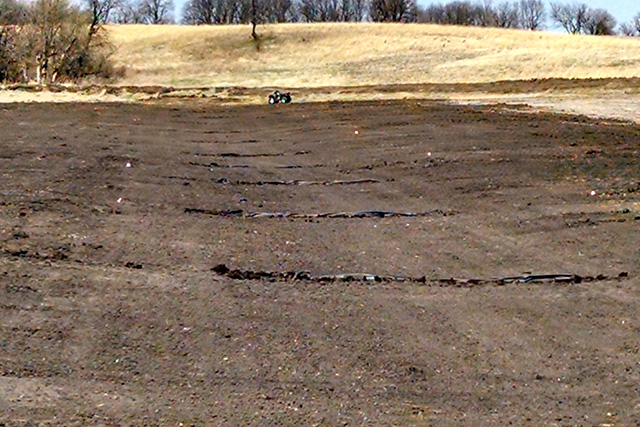

These pictures show fabric checks in new waterways. The waterways are seeded before the fabric checks are installed.
Previous
Next
The Waterway plow was developed for anyone who only installs fabric checks. It is a rigid frame plow and does not pivot. It comes standard with a fabric curtain. It does not come with a coulter. The fabric checks are installed across newly shaped waterways in farm fields or anywhere a small ditch is starting. The fabric checks are non woven material or silt fence material that is plowed across the waterway or ditch. It is usually installed 50',75, to 100' apart depending on the degree of slope. If the waterway is designed by the NRCS they will spec how far apart. The fabric checks are not staked up. They lay down on the ground. When the water flows down the waterway the fabric checks will slow the water down and spread it out so it is not concentrated in the center. This helps the water from cutting a ditch in the waterway.
Waterway Plow In Action
